Eaton
Dxrt UPS

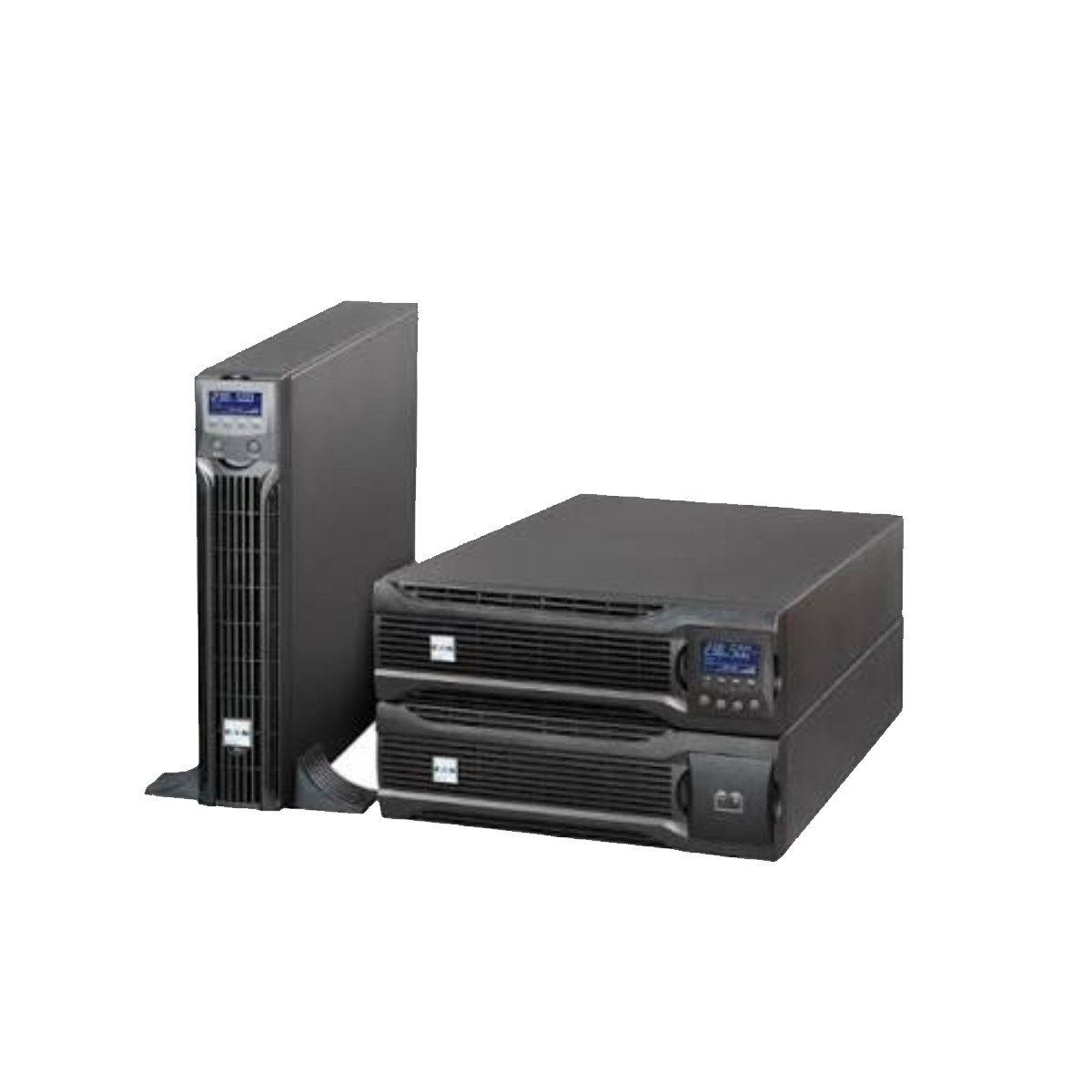

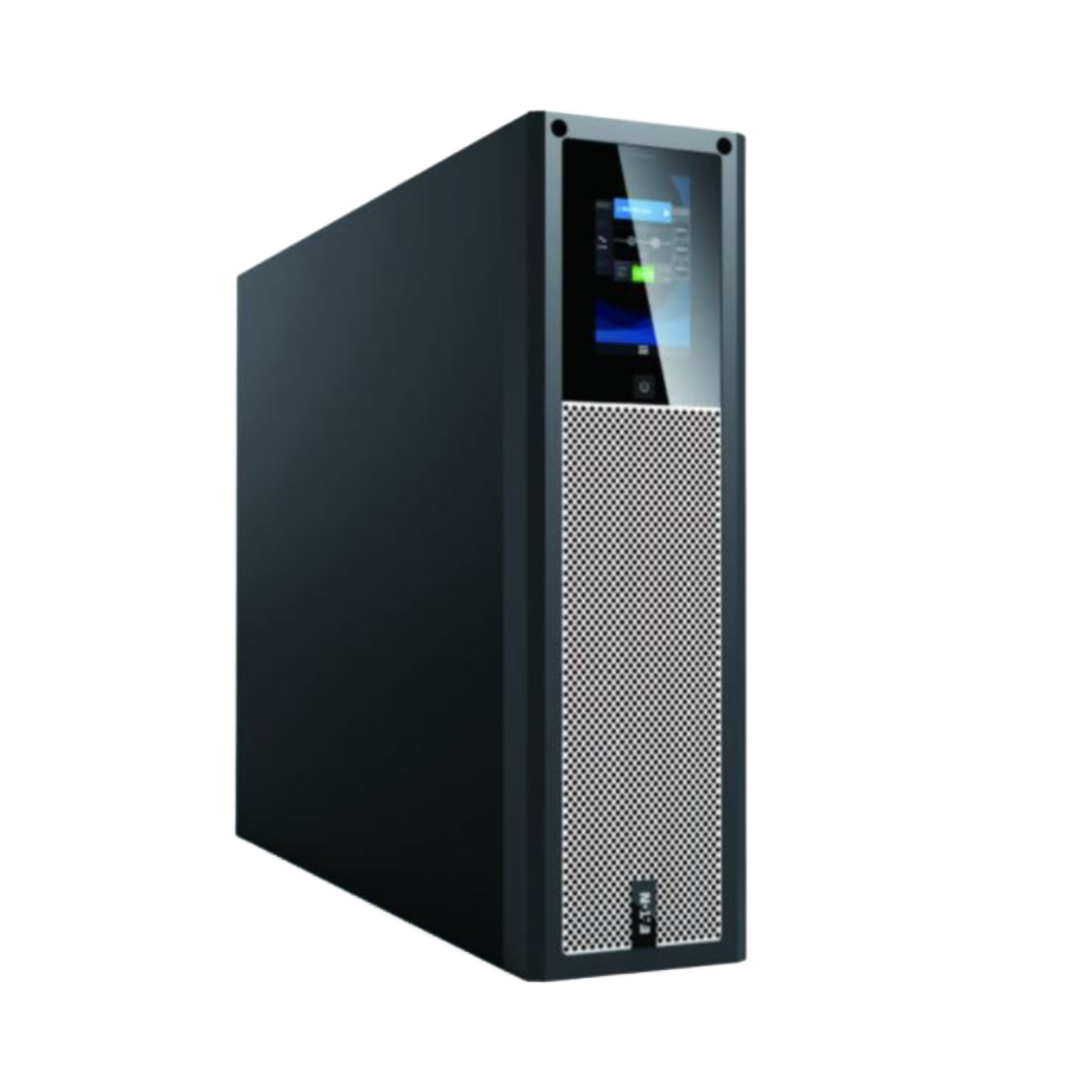

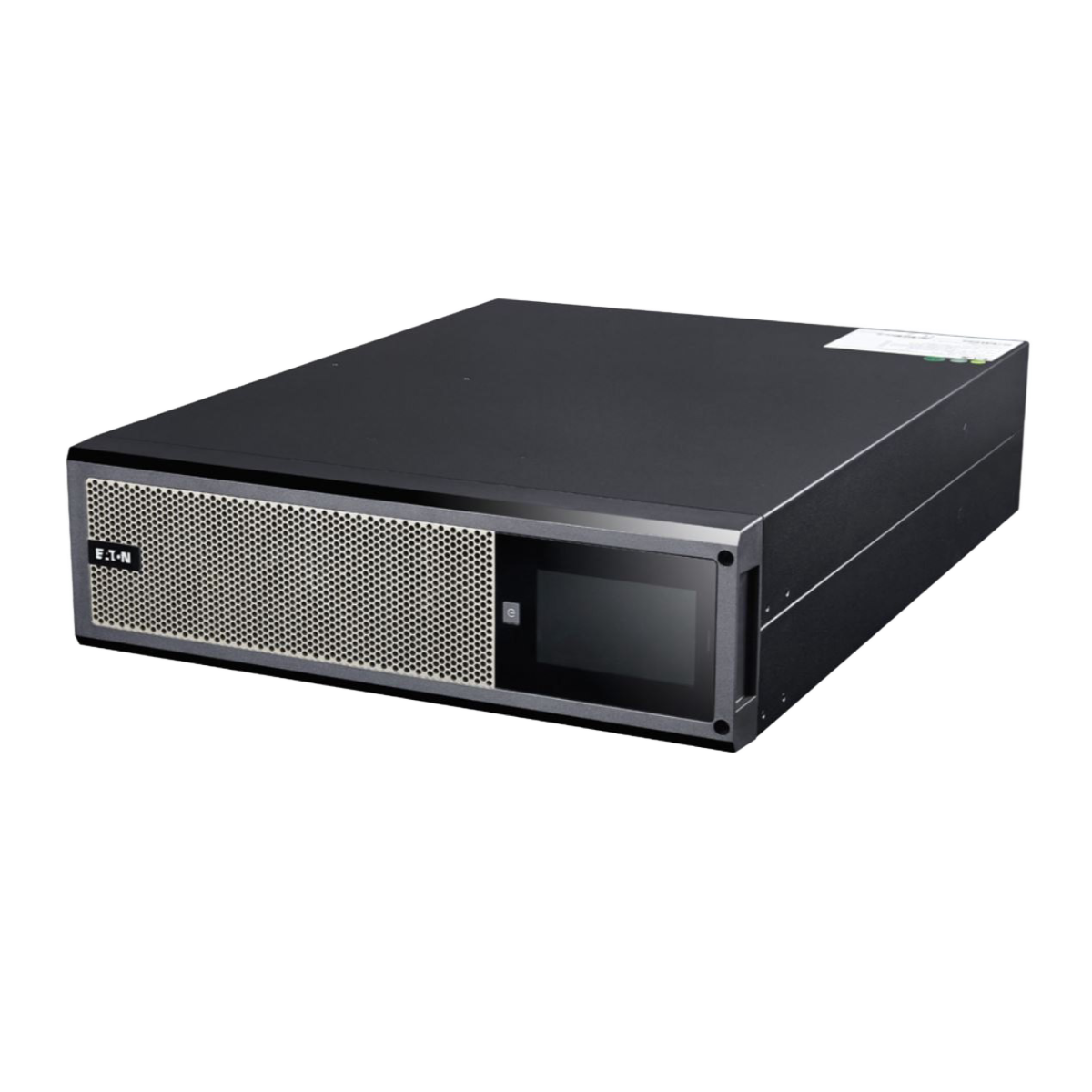

The Eaton DXRT is a single-phase online UPS built for commercial buildings and medium to larger enterprise environments, with power ratings from 6 to 10 kVA. Its true online double-conversion design provides continuous, clean power with zero transfer time during a mains failure, and it’s available in a flexible convertible tower or rack form factor, fitting standard 19-inch cabinets for data center or server room installations.

A graphical LCD display shows UPS status and measurements at a glance, with up to 100 event logs accessible directly from the unit. Communication options include USB, RS232 serial, and programmable dry contacts, with an optional network card enabling secure remote monitoring over HTTPS, SNMP, and email alerts. Battery configuration is flexible, supporting 16-20 battery packs with adjustable charger current, and runtime can be extended with additional battery modules for sites that need longer backup coverage than the standard configuration provides.

As an Eaton dealer in Kerala, Gain Infosystems supplies the DXRT UPS with full manufacturer warranty and installation support across Trivandrum, Kochi, Kollam, and Thrissur.

Specifications
Power Rating: 6-10 kVA (range)
Topology: Online double conversion, single phase
Form Factor: Convertible tower/rack, 19-inch cabinet compatible
Power Factor: Unity (1.0)
Display: Graphical LCD with event log
Communication: USB, RS232, programmable dry contacts, optional network card (SNMP/HTTPS)
Battery: Flexible 16-20 pack configuration, extendable runtime via additional modules

Key Features

• True online double conversion for zero transfer time
• Convertible tower/rack form factor for flexible installation
• Graphical LCD with up to 100 event logs
• Optional network card for remote SNMP/HTTPS monitoring
• Flexible, extendable battery configuration
